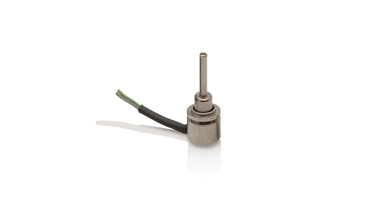

Hall Potentiometer POH 120 霍尔电位器
1.Hall Potentiometer POH 120 霍尔电位器具有寿命长、直径13mm的特点。
Features 特点
- long lifetime 寿命长
- Size Ø 13mm 直径13mm
Applications 应用
- valve controls 阀门控制
- joysticks 操纵杆
- steering angle measurement 转向角测量
- servo systems 伺服系统
Special Features 特殊功能
-hall sensor 霍尔传感器
-compensation for play and tolerance by decoupled axis possible 通过解耦，尽可能为运行和公差补偿
-freely programmable angles possible 可能做到可自由编程的角度
-load free engine when axis is uncoupled 轴耦合时，自由加载引擎
Features 特点
- long lifetime 寿命长
- Size Ø 13mm 直径13mm
Applications 应用
- valve controls 阀门控制
- joysticks 操纵杆
- steering angle measurement 转向角测量
- servo systems 伺服系统
Special Features 特殊功能
-hall sensor 霍尔传感器
-compensation for play and tolerance by decoupled axis possible 通过解耦，尽可能为运行和公差补偿
-freely programmable angles possible 可能做到可自由编程的角度
-load free engine when axis is uncoupled 轴耦合时，自由加载引擎
参数说明书下载链接：/filedownload/POH 120
| Electrical Specifications电气特性 | |
| Measuring range 测量范围 | 0 – 360° programmable |
| Independent linearity独立线性度 | ± 0.5% |
| Resolution分辨率 | 12 bit < 0.1° |
| Supply voltage (Vs)供电电压(Vs) | 5 (± 10%) VDC |
| Output signal输出信号 | 10% ... 90% of Vs |
| Current consumption without load | 18 mA |
| (typical)无负载的电流消耗（典型值） | |
| Min. ohmic load at output输出的最小电阻负载 | 10 kOhm |
| Max. capacitive load at output输出的最大电容负载 | 10 nF |
| Electrical connection电气连接 | Tinned cable wires |
| Operating temperature工作温度 | −40°C ... +85°C * |
| Mechanical specifications机械特性 | |
| Mechanical positioning range机械定位范围 | 360° continuous rotation |
| Bearings轴承 | Slide bearings / |
| uncoupled load free | |
| Min. lifetime (mechanical)最低寿命（机械） | 200 million cycles |
| Protection class防护等级 | IP 65 with axis /IP 67 uncoupled load free |
| Materials材料 | |
| Housing material外壳材料 | Stainless steel |
| Axis material轴材料 | Brass (nickel plated) |
| Ambient conditions环境条件 | |
| Operating temperature工作温度 | −40°C ... +85°C * |
| Sample Order订货样本 | ||||
| Part no. 零件号 | Type series 模式组 | Elect. measuring range 电气测量范围 | Elect. Connection 电气连接 | |
| POH 120 with axis | E050200120 | POH | 360° | Wire connection |
| POH 120 with uncoupled axis | E050200121 | POH | 360° | Wire connection |
